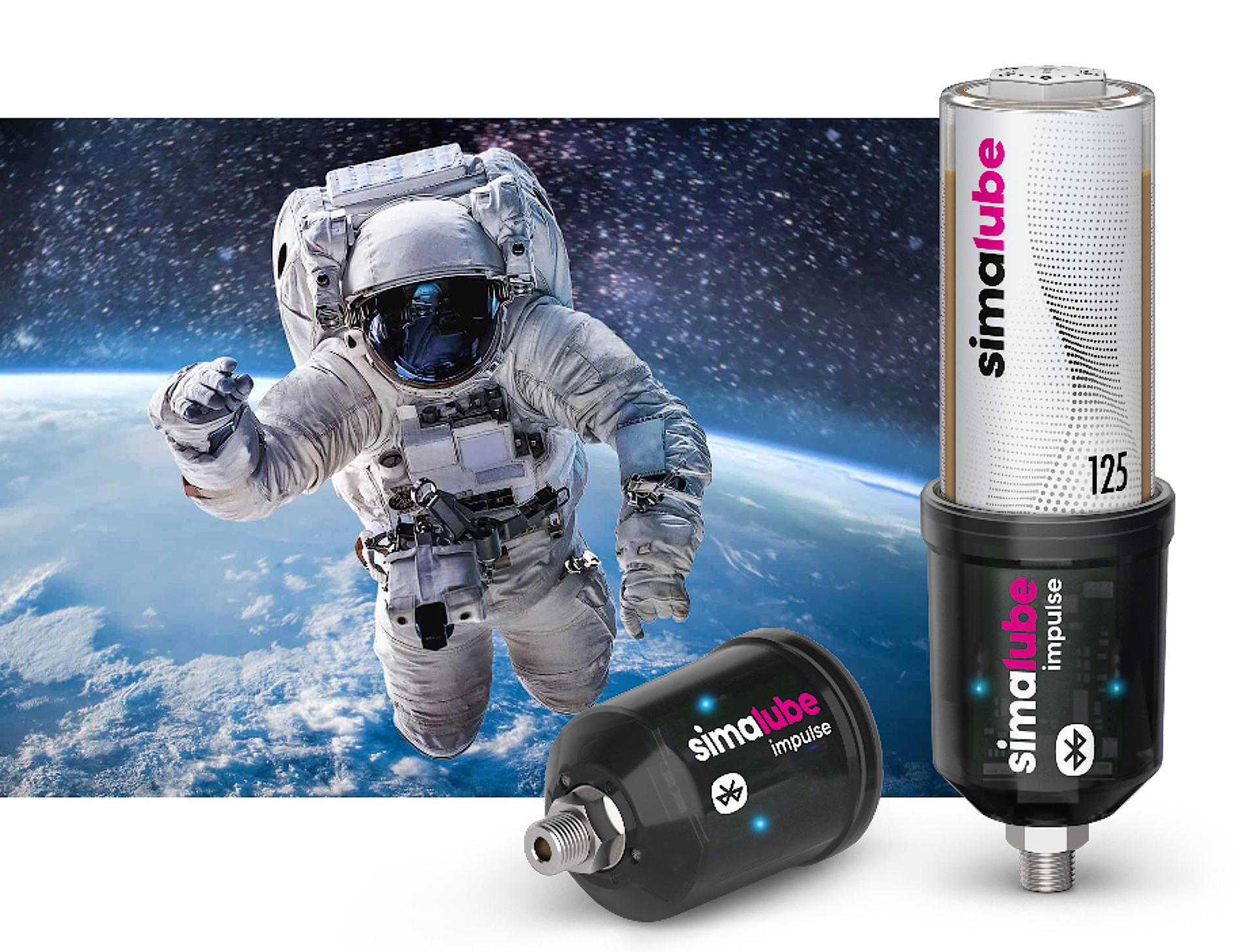

simalube IMPULSE connect
Digital monitoring and configuration of the lubrication points via Bluetooth® .
The device can increase the pressure up to 10 bar.
Lift off to a new level of automatic lubrication with simalube IMPULSE connect
The simalube IMPULSE connect is the latest generation of the pressure booster from the simalube family. The proven functions of the IMPULSE have been supplemented with the option of connecting the device to a smartphone via Bluetooth®. In connection with the newly developed «simatec world of maintenance» app, the devices can be easily configured and then monitored without having to be directly at the lubrication point. Information such as general status, fill level, lubricant, size, start and change date etc. is displayed to the user and easy to read in the app. It also enables the customer to manage the lubrication points digitally.
- Communication via Bluetooth®
- Universally configurable
- Reusable
- Configuration and monitoring with the "simatec World of Maintenance" app
- 10 bar pressure
Customer benefit
- Cost savings through faster, easier and safer inspection rounds
- Easy to use: status and error displays can be easily read on the smartphone
- Management of lubrication points in Lubechart
- Digital support through the app: user guidance in the form of animated installation and operating instructions
- Less wear and tear on the components thanks to continuous lubrication; in time mode, temperature-independent
- No production interruptions for maintenance and monitoring purposes, this results in a higher availability of the production systems
Functionality
- Connection via Bluetooth®: range up to 20 meters
- Configuration and monitoring with the «simatec World of Maintenance» app
- Pressure booster up to 10 bar, allows line lengths of up to 4 m
- Modular system, suitable for dispenser sizes 60, 125 and 250 ml
- Duration adjustable from 1 to 12 months
- Suitable for grease (up to NLGI class 2) and oil
- Gentle on the lubricants, these are fed to the IMPULSE by the simalube lubricator at low pressure
- Compact size, can be installed in any position
Diverse applications
- Can be installed outside of high-temperature or hazardous areas with tubes up to 4 metres long
- The compact format means it can be installed in very small spaces
- Functions perfectly in all positions, even underwater
Technical Data
simalube IMPULSE connect
Product
Automatic pressure booster for the simalube lubricator
Drive system
Electromechanical
Power supply
Battery pack, 6 V 2.3 Ah
Function Display
LED status display – green/red/blue every 10 seconds
Connectivity
IMPULSE connect supports Bluetooth® Low Energy 5.0 standard. The connection can reach up to 20m in an interference free, open-field environment.
Dispensing volume
0.5 ml per stroke
Working pressure
Up to 10 bar
Operating temperature
–10 °C to +55 °C
Time setting
1 to 12 months – determined by the setting on the simalube or through the
app modus «time» or «automatic».
Lubrication rate
Depends on the size and settings of the simalube: 0,17 bis 8,3 ml/day
Lubricator volume
According to lubricator: 60 ml, 125 ml or 250 ml
Lubricant
Greases up to NLGI 2 or oils
Installation position
Any
Connection thread
G ¼" (with integrated non-return valve), Hexagon with wrench size 17 mm
Housing dimensions
Ø 60 × 93 mm
Housing material
(PET semitransparent)
Weight
0.26 kg
Protection rating
IP68 (dust- and waterproof)
Warranty & service life
3 years from the production date or until 10 simalube lubricators (125 ml) have been emptied
Storage
Recommended at +20 °C (+/– 5 °C). Protect against sunlight and store in a dry place (<65% humidity)
Videos
«simatec world of maintenance» app
With the «simatec world of maintenance» app, simatec ag has created a platform for easier and more efficient management of lubrication work. The app offers the user the possibility to record lubrication points, to set the necessary parameters for the lubrication and to control or monitor all activities around the lubrication. The simalube IMPULSE connect equipped with Bluetooth® can be configured directly via the app, the current operating status can be viewed from a distance of up to 20m via the app.
The «simatec world of maintenance» app can be downloaded from the Apple Store and the Google Play Store and installed on the smartphone.
