simalube accessories

A comprehensive, practice-oriented range of accessories enables the simalube lubricators to be applied without any problems. The accessories program is based on a modular system. This means that the various parts are compatible and can be combined in any way to solve any lubrication problem.

Connections









Bent connection 45°

D R 1/4"
No. 290-10010 ________

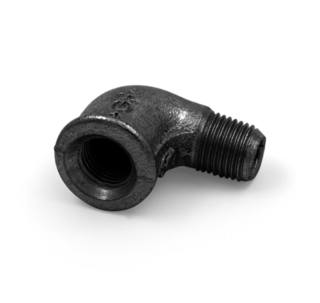

Bent connection 90°

D R 1/4"
No. 290-10020 ________

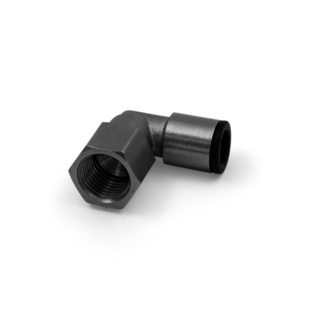

Rotary elbow , female (for hose Ø8 mm)

D R 1/4"
No. 290-10030 ________

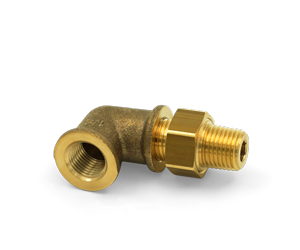

Bent connection 90°, swiveling

D R 1/4"
No. 290-10040 ________

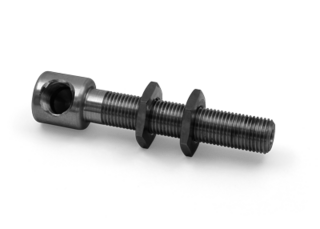

90° connection with thread incl. 2 nuts (only for oil)

L 70
No. 290-10050 ________

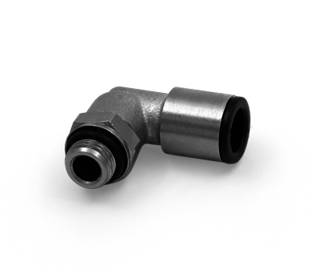

Rotary elbow , male (for hose d=8 mm)

D G 1/8" G 1/4"
No. 290-10070 290-10080

Connection straight

D G 3/8" G 1/2"
No. 290-10100 290-10110

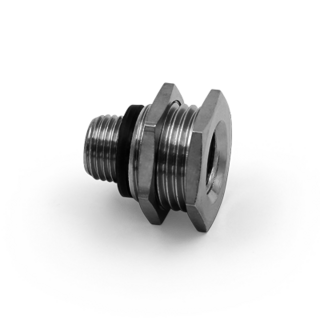

Fixation nipple

L 25
No. 290-10150 ________

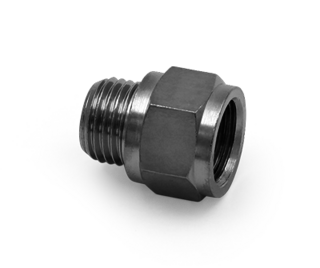

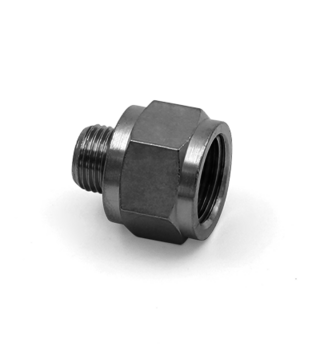

Reducing nipple

D G 1/8" G 1/4" M6 M8 M8x1
No. 290-10200 290-10210 290-10220 290-10230 290-10240
D M10 M10x1 M12 M12x1,5 UNF 1/4"
No. 290-10250 290-10260 290-10270 290-10280 290-11210

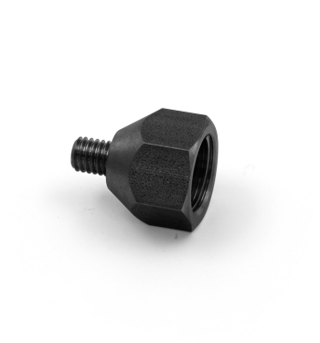

Reducing nipple M6, heavy-duty type

D M6
No. 290-15000 ________

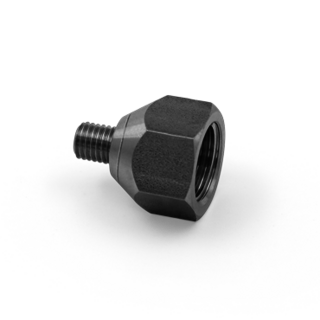

Reducing nipple UNF 1/4", heavy-duty type

D UNF 1/4"
No. 290-15010 ________

Extension

L 10 35 50
No. 290-10210 290-10400 290-10410

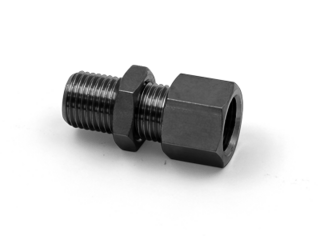

Screwed connection (25 mm, 1 nut / 60 mm, 2 nuts)

L 25 60
No. 290-10450 290-10460

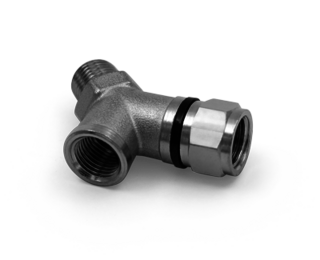

Y-Manifold (contains reducing nipple 290-10210)

D R 1/4"
No. 290-10500 ________

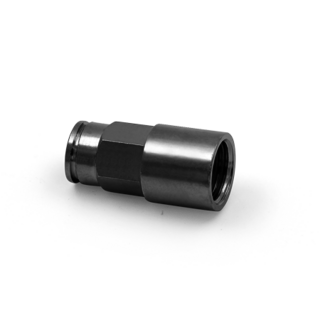

Quick connection coupling (for hose d=8 mm)

D G 1/4"
No. 290-10600 ________

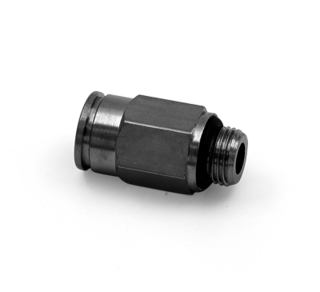

Quick connection coupling (for hose d=8 mm)

D G 1/8" G 1/4" G 3/8"
No. 290-10700 290-10710 290-10720

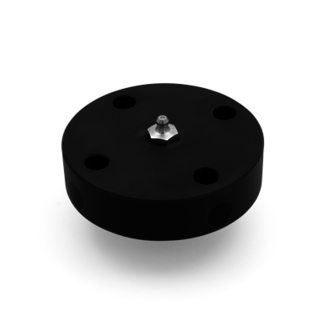

4-fold adapter

D G 1/2" G 1/4"
No. 290-41000 290-41010

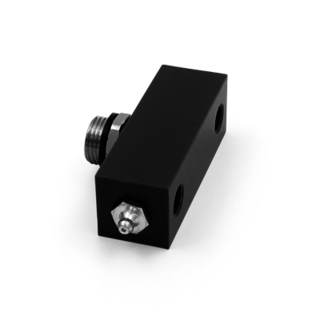

2-fold adapter

D G 1/2" G 1/4"
No. 290-41020 290-41030
Lubricator accessories and miscellaneous

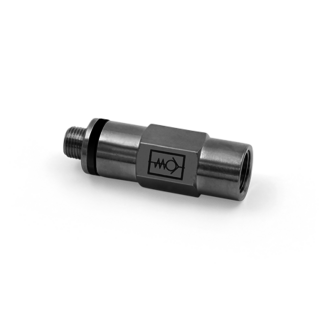

Non return valve (metal)

D G 1/8" G 1/4"
No. 290-20200 290-20210

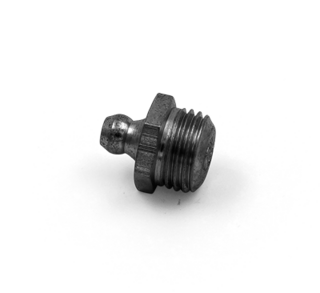

Connector nipple (for cleaning and filling of grease lines)

D R 1/4"
No. 290-30110 ________

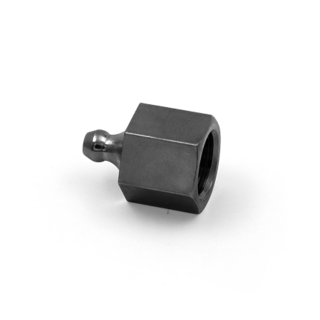

Refill nipple (for refilling of simalube)

D G 1/4"
No. 290-30120 ________

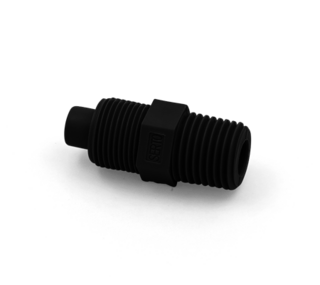

Connector nipple to grease gun filler for filling lubricator

D R 1/4" R 3/8"
No. 290-30130 290-30140

REFILL Cartridge (gas generator)

  15 ml 30 ml 60 ml 125 ml 250 ml
No. 220-50020 220-50040 220-50060 220-50080 220-50100

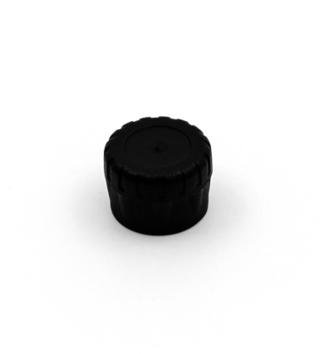

Closing nipple (plastic)

No. 290-50500 ________

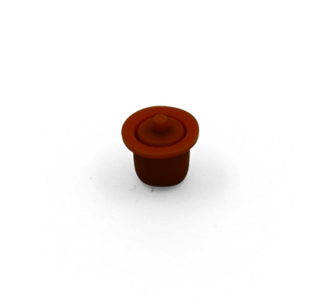

Non-return valve plug

No. 290-50600 ________

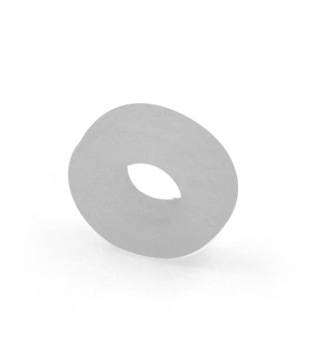

Gasket ring

No. 290-50800 ________











Safety accessories

Mounting support consisting of flange,connection straight R 1/4" nut

No. 290-20800 ________

Protection cover to mounting support

  30-125 ml 250 ml
L 105 195
No. 290-20810 290-20850

Protection cap

  30-125 ml 250 ml
L 15
No. 290-20750 290-20780

Sun protection cover

  30-125 ml 250 ml
No. 115 205
No. 290-20760 290-20770
Brushes

Round brush

D x L 25 x 45 mm
No. 290-20340 ________

Square brushes

L 25 40 70 100
No. 290-20380 290-20350 290-20360 290-20370

Brush with lateral connection

L 25 40 70 100
No. 290-20384 290-20354 290-20364 290-20374

Square brushes (for food)

L 25 40 70 100
No. 290-20385 290-20355 290-20365 290-20375

Brush with lateral connection (for food)

L 40 70 100
No. 290-20357 290-20367 290-20377

Brush for high temperature applications

L 25 40 100
No. 290-20500 290-20510 290-20530

Brush 100 mm for rope lubrication

L 100
No. 290-20550 ________

Round brush

D x L 25 x 15 mm
No. 290-20410 ________

Elevator brush large

  5-16 mm 16-32 mm
No. 290-20390 290-20440

Elevator brush small

  5-16 mm
No. 290-20420 ________

Guide rail brush

  40-50 mm
No. 290-20460 ________
Installation accessories





Hose (recommended length to the lubrication point max 0.5 m) d=8/6 mm

L per meter
No. 290-20000/…m
No. 290-20020/…m (high temperature)
No. 290-20040/…m (Hose for small bend radius)

Clamp for simalube

D 50
No. 290-20100 ________

Adapter for clamp (60 mm), Plastic

A 50
No. 290-20120 ________

Clamp for round brush

D 28
No. 290-20130 ________

Distance holder to clamp for round brush

A 15
No. 290-20140 ________

Clamp for simalube 15

D 22
No. 290-20150 ________

Magnetic fixture for clamps

No. 290-20190 ________

Mounting bracket to mounting support

L 75 240 390
No. 290-20820 290-20830 290-20840
  1x 3x 5x

Bracket, universally adjustable

No. 290-28000 ________

Bracket for simalube 15-60 ml

No. 290-20870 ________





simalube multipoint installation components

Quick connection coupling for hose Ø 4 mm

D R 1/8" R 1/4" M5 M6
No. 290-11700 290-11710 290-11720 290-11730

Hose (recommended length to the lubrication point max. 0.5 m) Ø 4 / 2.7 mm

L per meter
No. 290-21000/…m ________

Fitting connection SLM (5 connections Ø 4 mm incl. retaining screws)

D 4
No. 290-29000 ________
Grease cartridges and oil bottles for prelubrication





Grease gun (with valve pipe)

  DIN 1283
No. 290-30100 ________

Grease cartridges (DIN 1284; 400 ml)

Grease SL 01 SL 02 SL 04 SL 06
No. 290-70010 290-70020 290-70040 290-70060
Grease SL 09 SL 10 SL 22 SL 24 SL 26
No. 290-70090 290-70100 290-70220 290-70240 290-70260

Oil bottle 0.5 l

Oil SL 14 SL 15 SL 16 SL 18 SL 19
No. 290-71140 290-71150 290-71160 290-71180 290-71190













simalube IMPULSE connect accessories

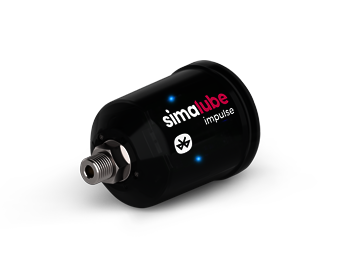

simalube IMPULSE connect

No. 230-10100 ________

simalube IMPULSE battery pack

Power 6 V / 2,3 Ah
No. 230-50000 ________

Prefill nipple G 1/4"

No. 290-30150 ________
